High Power Sports & FloodlightLED FloodlightModel: YXYSW4
YXYSW4

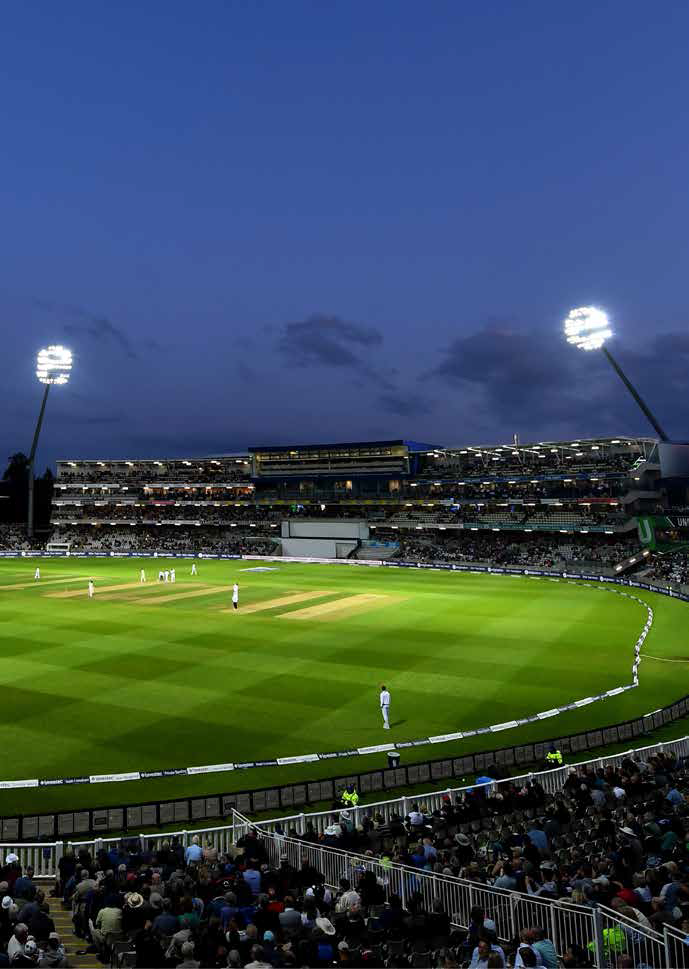

The YXYSW4 is a 400W to 1200W IP66 LED floodlight designed for stadium, port, and large-scale infrastructure lighting. It carries UL, ETL, CE, and RoHS certifications. The integrated die-casting heat sink and die-casting aluminum arm ensure excellent thermal management and Anti-typhoon 17 structural rigidity, achieving a rated lifetime of 50,000 hours. Available in 3000K to 6500K static white, it supports 1-10V and DALI control protocols and multiple beam angles for precise optic control.
Color & Optic
Color Options
Beam Options
Product Specifications
Model Configuration
| Model | Length | Power | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| YXYSW4-D400-600W | 493mm | 400W/480W |
White
|
72,236 lm（480W）
|
Weight: 16.0 KGS Qty/Ctn: 1 Units/Ctn Carton: 550*500*500 mm
|
| YXYSW4-D800-1000W | 651mm | 800W/960W |
White
|
144,066 lm（960W）
|
Weight: 29.3 KGS Qty/Ctn: 1 Units/Ctn Carton: 700*650*600 mm
|
Lumen output calculated at 150 lm/W (±5%). Specific lumen output may vary based on exact CCT and optics configuration. All models are IP66 and carry a 5-year warranty.
Advantages
Die-Casting Heat Sink
Integrated structure delivers excellent thermal management and a compact footprint for high-power demands.
Anti-Typhoon Arm & Bracket
Die-casting aluminum construction offers Anti-typhoon 17 structural stability and high corrosion resistance for coastal areas.
Breather Valve
Integrated breather valve perfectly balances the internal and external temperature and humidity, extending fixture life.
Double Surge Protection
Built-in high-quality drivers combined with an extra 10KV SPD protect the fixture against severe voltage fluctuations.
Harsh Environment Ready
IP66 waterproof rating and IK08 impact resistance ensure reliable performance in demanding outdoor infrastructure applications.
High Efficiency Optics
High strength polycarbonate lenses deliver exceptional light distribution and efficacy up to 150 lm/W.
